[eXplainable AI] Grad-CAM with MNIST

Create pipeline to train model with MNIST dataset



# Import tensorflow and matplot lib
from tensorflow.keras.datasets.mnist import load_data
from matplotlib import pyplot as plt
import tensorflow as tf

# load MNIST dataset
(trainX, trainy), (testX, testy) = load_data()

# Plot example images
for i in range(36):
    # Defining subplots for multiple images
    plt.subplot(6, 6, i+1)

    # plot raw pixel data

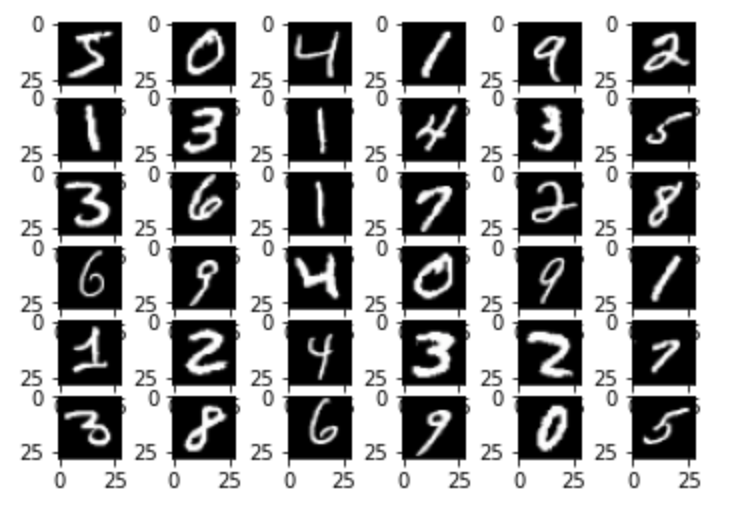

    plt.imshow(trainX[i], cmap=plt.get_cmap('gray'))

# show the figure
plt.show()

import matplotlib.pyplot as plt

image_index = 7777 # You may select anything up to 60,000
print(trainy[image_index]) # The label is 8

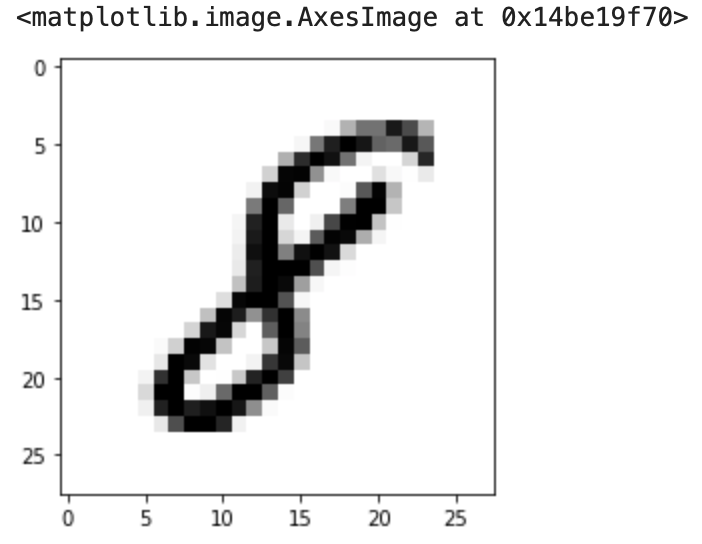

plt.imshow(trainX[image_index], cmap='Greys')

# Reshaping the array to 4-dims so that it can work with the Keras API
trainX = trainX.reshape(trainX.shape[0], 28, 28, 1)
testX = testX.reshape(testX.shape[0], 28, 28, 1)
input_shape = (28, 28, 1)

# Values needs to be in float
trainX = trainX.astype('float32')
testX = testX.astype('float32')

# Normalizing the RGB codes (range of 0 to 1) by dividing it to the max RGB value.
trainX /= 255
testX /= 255

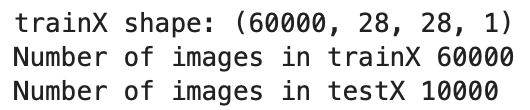

print('trainX shape:', trainX.shape)
print('Number of images in trainX', trainX.shape[0])
print('Number of images in testX', testX.shape[0])

# Importing the required Keras modules containing model and layers
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Conv2D, Dropout, Flatten, MaxPooling2D

# Creating a Sequential Model and adding the layers
model = Sequential()
model.add(Conv2D(28, kernel_size=(3,3), input_shape=input_shape))
model.add(Conv2D(28, (3, 3)))
model.add(Conv2D(28, (3, 3)))
model.add(Flatten()) # Flattening the 2D arrays for fully connected layers
model.add(Dense(128, activation=tf.nn.relu))
model.add(Dropout(0.2))
model.add(Dense(10,activation=tf.nn.softmax))

# Show network structure

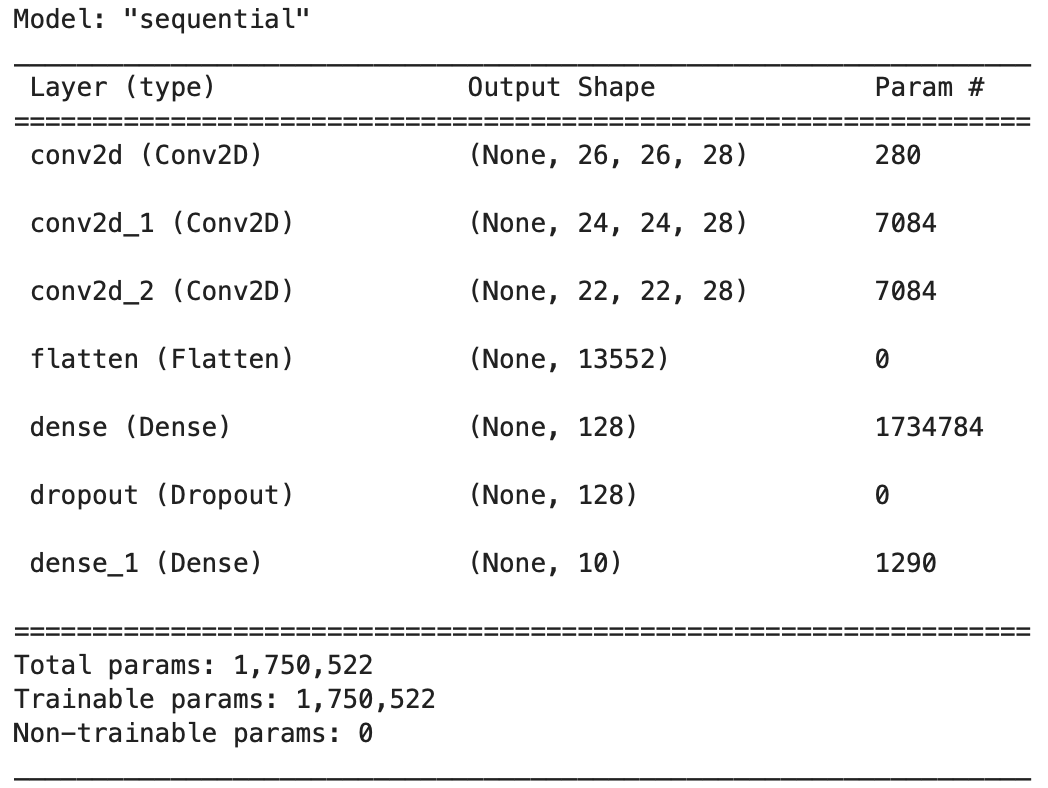

model.summary()

model.compile(optimizer='adam',
              loss='sparse_categorical_crossentropy',
              metrics=['accuracy'])
model.fit(x=trainX,y=trainy, epochs=5)

Epoch 1/5
1875/1875 [==============================] - 81s 43ms/step - loss: 0.2333 - accuracy: 0.9296
Epoch 2/5
1875/1875 [==============================] - 83s 44ms/step - loss: 0.1355 - accuracy: 0.9592



Use of vizgradcam library to explain instances



git clone https://github.com/gkeechin/vizgradcam

image_index = 4444

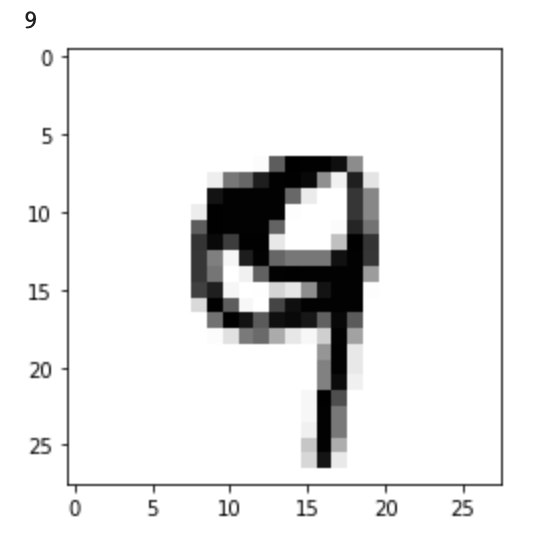

plt.imshow(testX[image_index].reshape(28, 28),cmap='Greys')
pred = model.predict(testX[image_index].reshape(1, 28, 28, 1))
print(pred.argmax())

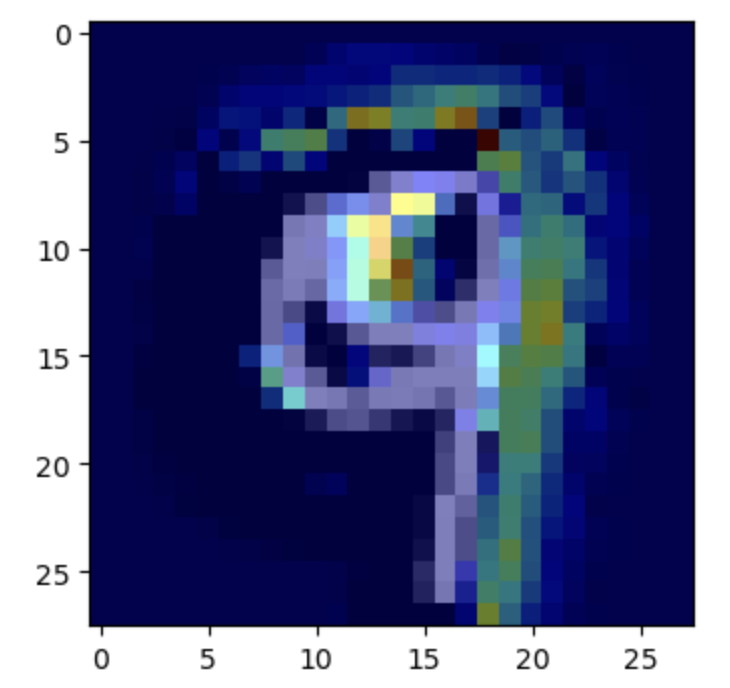

from vizgradcam.gradcam import VizGradCAM

test_img = testX[4444]
VizGradCAM(
    model,    # Passing the model
    test_img  # and the test image you want to explain
)

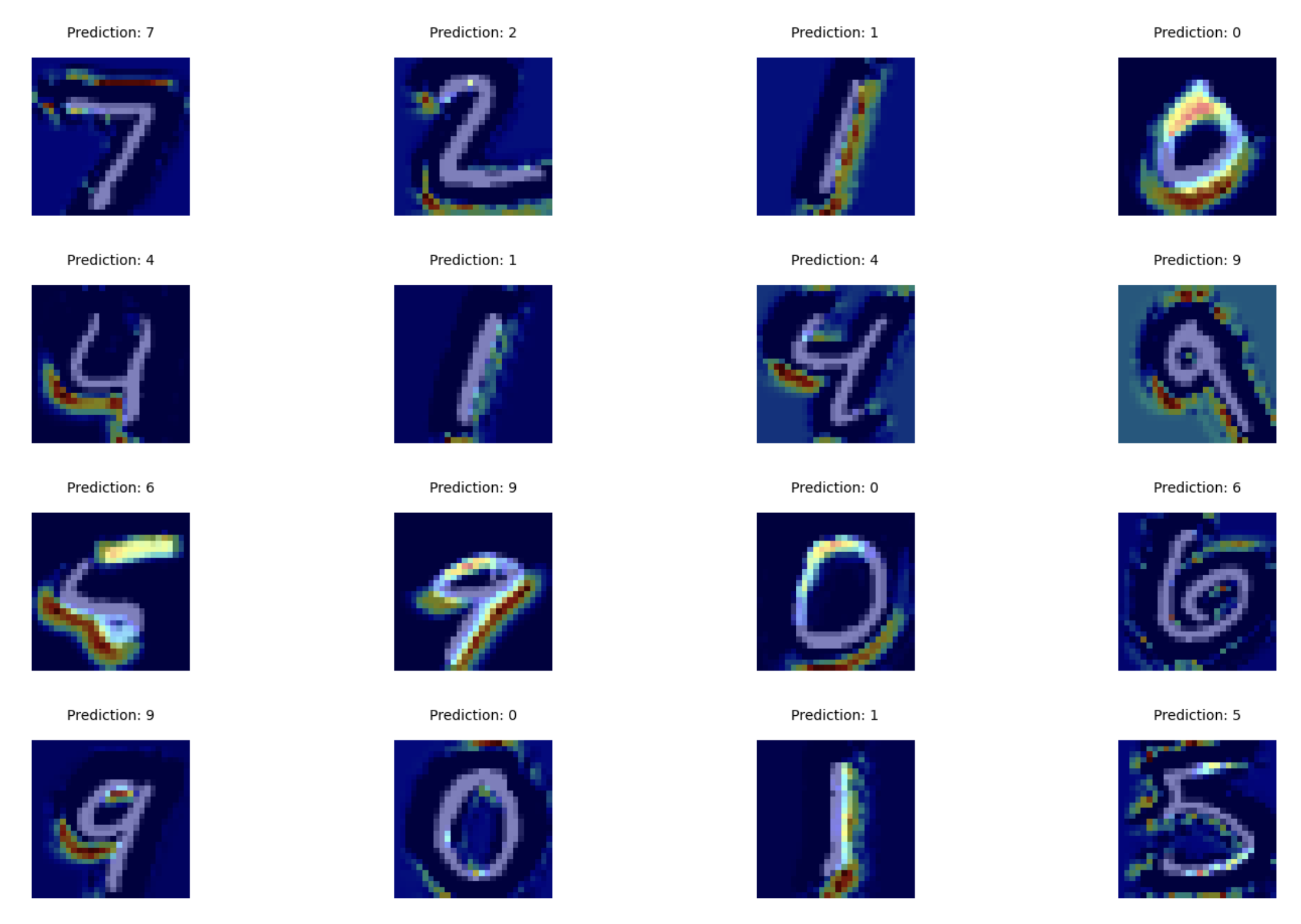

for i in range(16):
    # define subplot
    plt.rcParams["figure.dpi"] = 250
    plt.subplot(4, 4, i+1)
    plt.tight_layout()
    pred = model.predict(testX[i].reshape(1, 28, 28, 1))
    plt.title("Prediction: " + str(pred.argmax()),fontsize = 4)
    plt.axis('off')
    VizGradCAM(model, testX[i])
